Infrared Panel Heater with frame – PE Plus Series

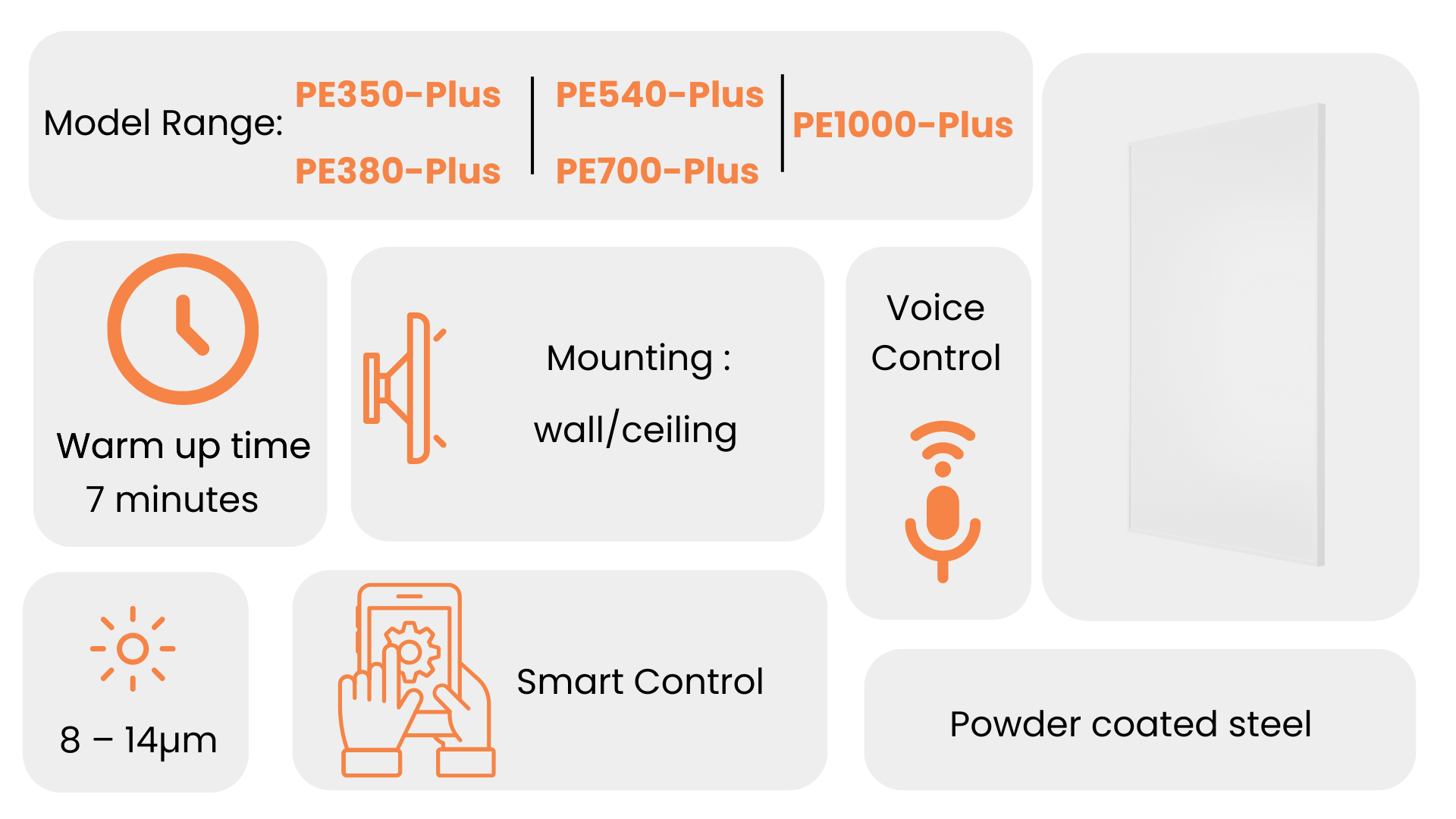

Key Features
- White Aluminum frame and surface
- Easy installation
- Wall/ceiling and portable possible
- Built-in thermostat receiver
- Wireless controlled by Sundirect smart controllers
- Voice controllable with Smart Pro and SmartPlug
wireless control
Thermostat ready
Easy mounting
Sleek frame design
What size panel do I need for my area?
| Model | Power | Size |
|---|---|---|
|
PE350-Plus |
350W |
60*60cm |
|
PE380-Plus |
380W |
30*120cm |
|
PE540-Plus |
540W |
60*90cm |
|
PE700-Plus |
700W |
60*120cm |
|
PE1000-Plus |
1000W |
85*120cm |
Instant Warmth
Feel the comfort the moment you turn it on.
Touch of Luxury
Comfort that feels as refined as it looks.
Built-in Reliability
Every unit tested to perform — and endure.
Safe for All
Child and pet friendly design for total peace of mind.
Made to Last
Premium materials, enduring comfort.
Effortless Setup
Install with ease — ready to go in minutes.

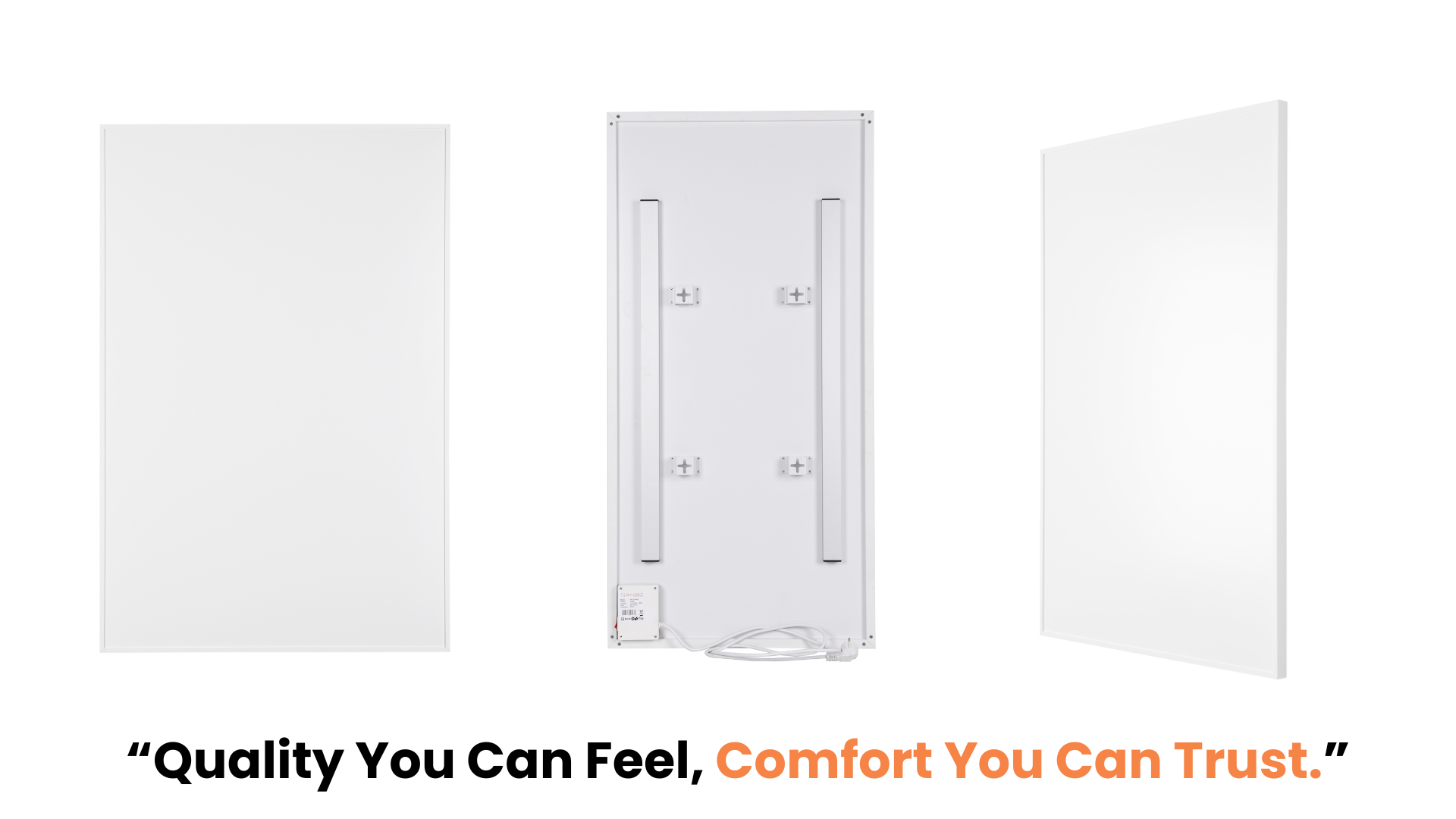

Sleek Framed Infrared Heating – Sundirect PE Plus Series
The Sundirect PE Plus Series is a framed infrared panel heater that combines sleek design, excellent heating performance, and outstanding value. With its clean white aluminum surface and powder-coated frame, the PE Plus blends seamlessly into modern interiors, making it ideal for both residential and commercial applications.
Innovative Framed Design with Reliable Performance
The PE Plus infrared heater features a framed white aluminum finish, designed for durability and elegance. Inside, the panel is powered by advanced carbon crystal heating technology, which delivers fast warm-up and consistent heat output.
To enhance efficiency, each panel is insulated with high-temperature fiberglass to minimize heat loss at the back. A polished steel reflector optimizes performance by directing all infrared rays forward into the room.
The built-in thermostat receiver allows the PE Plus to be controlled wirelessly with Sundirect smart thermostats, giving you modern heating control at your fingertips.
Specification
| Model: | PE-Plus |
| Surface: | Aluminum |
| Back | Powder coated steel |
| Colour: | white, RAL 9003 |
| Heating technology: | Carbon crystal |
| Warm up time | 7minutes |
| Infrared radiation | 8 – 14µm |
| Built-in thermostat receiver | Yes |
| Transmission frequency | 433MHz, RF connection |
| Power supply: | 220-240V, 50-60Hz |
| IP rating: | IP 44 |
| Protection class: | I |
| Plug: | Schuko plug with 1.8 cable |
| Certifications: | CE-LVD/CE-RED/ GS/ ROHS/ REACH/ ISO9001/BSCI |
| Warranty | 5 years |
Control / Accessories
Installation and Maintenance
The PE Plus is designed with Easy-Fit mounting, allowing installation on walls or ceilings in under 10 minutes. Portable use is also possible with optional accessories such as standing feet or rolling stands.
- Mounting Options: Wall, ceiling, or portable.
- Models & Sizes: From 350W (3–7 m²) to 1000W (10–20 m²).
- Plug: Schuko with 1.8m cable.
- IP Rating: IP44, suitable for humid areas like bathrooms.
- Warranty: 5 years.
Cleaning requires only a soft, dry cloth. As with all Sundirect panels, maintenance is minimal and no servicing is required.
Downloads

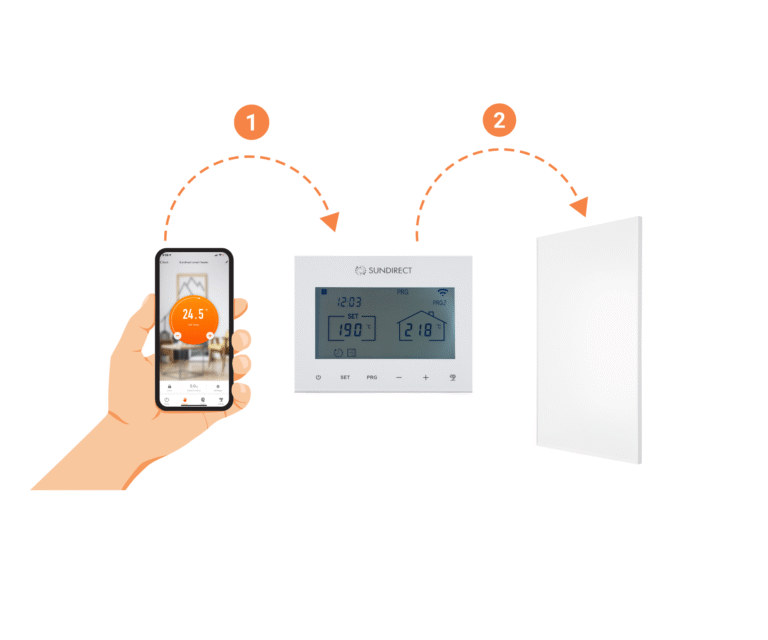

Easy Control of your PE Plus Framed Infrared Panel
The PE Plus Series combines sleek design with smart functionality, featuring a white aluminum frame and surface for a modern look. With a built-in thermostat receiver, it’s wirelessly controlled via Sundirect Smart Controllers and even supports voice control when paired with Smart2.0 Pro or SmartPlug.
Easy to install on the wall, ceiling, or with portable stands, the PE Plus delivers efficient heating thanks to its carbon crystal heating element and polished metal reflector. Select models (PE350-Plus and PE700-Plus) also fit standard ceiling grids.
With fast installation under 10 minutes, the PE Plus Series offers simple, flexible, and smart heating control.
Where Can I Use the PE Plus Infrared Panel Heater?
The PE Plus Series offers versatile heating for a wide range of domestic and commercial spaces.
Domestic Applications
- Living Rooms & Bedrooms: A stylish and efficient replacement for radiators.
- Kitchens & Bathrooms: IP44 protection makes it safe for humid environments.
- Rental Properties: Easy to install and remove, perfect for flexible housing needs.
Commercial Applications
- Offices & Meeting Rooms: Slimline panels that can also fit ceiling grids.
- Retail & Hospitality: Discreet heating with minimal maintenance.
- Educational & Public Buildings: Safe, efficient, and reliable heating for shared spaces.
Looking for a heating and lighting solution tailored to your needs? Explore our Lux Plus Infrared Panel Heater range and discover the perfect fit for every room, building, or business.
How Do Infrared Heaters Work?
Infrared heaters work differently from traditional convection heaters. Instead of warming the air, they emit invisible waves of heat that are absorbed directly by objects, walls, and people, just like natural sunlight, but without the harmful UV rays.
This means the warmth is felt faster and lasts longer, even when doors or windows are open. Because they don’t rely on circulating hot air, there’s no dust movement, no drafts, and no wasted energy heating unused space above head height.
Far infrared is especially gentle and effective. It penetrates just under the skin to provide a deep, lasting warmth that feels natural, comfortable, and efficient. It’s completely silent, safe, and perfect for both homes and commercial settings.
In short, infrared heating offers a smarter, healthier, and more economical way to stay warm — all while reducing your carbon footprint.
Why Choose Infrared Heating Panels?
Pure Air Comfort
No dust or dry air — just clean, natural heat for healthier living.
Targeted Heating
Warm only the spaces you need the most
Maintenance-Free
No moving parts, no filters simply install, switch on, and relax.
Whisper-Silent
No more hum, no buzz, just quiet comfort.
Smart Energy Use
Delivers powerful warmth using less energy — efficient comfort
Quick Heat Response
Instant warmth without preheating the whole space.
Instant Coziness
Enjoy soft, radiant warmth the second it starts.
Moisture Control
Keeps walls dry and helps prevent condensation.
Need Expert Advice?
Not sure what size heater you need for your room? Use our handy Wattage Calculator to quickly work out the recommended wattage for all your rooms or areas.
FAQ's
The PE Plus combines a framed aluminum design, advanced carbon crystal heating technology, and smart thermostat compatibility, delivering efficient and stylish heating for both homes and businesses.
Each panel warms up in approximately 7 minutes, providing fast and consistent radiant heat across the room.
Yes. With an IP44 rating, the PE Plus is safe for use in kitchens, bathrooms, and other humid spaces.
The built-in thermostat receiver allows wireless control with Sundirect’s Smart2.0, Smart2.0 Pro, or SmartPlug thermostats. You can manage heating schedules, app control, and even voice commands with Alexa.
PE Plus panels can be wall-mounted, ceiling-mounted, or used portably with accessories. Sizes range from 350W (3–7 m² coverage) to 1000W (10–20 m² coverage), making them suitable for both small rooms and larger areas.
