Battery Back-Up Wireless Thermostat For Lux-Plus Series – Smart Lux
Features
- Heating and light controller for Lux-Plus series
- 7-day programmable heating schedule
- Open window detection for energy efficiency
- Adaptive start function for optimal comfort
- Child lock and heat lock modes for safety
- Precise temperature control with ±0.1°C accuracy
- Dimmable light control
- 3000K to 6000K tunable color temperature
- Group control support for up to 10 Lux-Plus panels
Model Range
| Power | Control | Operating temperature | Size | Frequency | Control distance | Communicating Models |
|---|---|---|---|---|---|---|
| 2x AA batteries | Wireless via RF | 5–40°C | 86×123×20mm | 2.4GHz via RF | 35m in open obstacle | Lux-Plus range |
Find Out More
Description

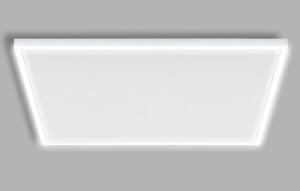

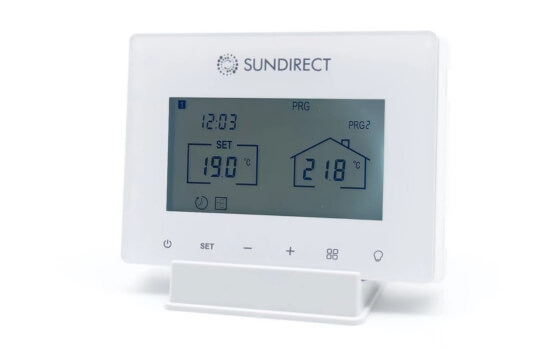

Sundirect Smart Lux is a wireless remote control thermostat that is specially designed to work together with the Sundirect Lux-Plus series, which is the infrared heating panel with integrated light.
With our Smart Lux control system, you can control both heating and light of the Lux-Plus infrared lighting heater.
As a thermostat for infrared heating panel, Smart Lux has all the necessary energy saving functions including 7 days heating program, open window detection as well as adaptive start.
Additionally, with Smart Lux you can easily control the light of Lux-Plus series, including dimming and adjusting the desired light color temperature of the Lux-plus heater from 3000K to 4000K and 6000K. Smart Lux also offers a special mode called Heat Lock mode, under the Heat Lock mode, the heating settings of the thermostat will be locked and all the buttons are turned into a light switch, this function is especially useful in the summer period when heating is not needed.

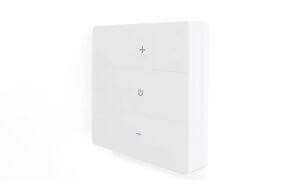

You can pair one Smart Lux to up to ten Lux-Plus lighting panel heaters at once. On top, it also works with the extra lighting switch – Smart Switch. This light switch that is especially designed for the Lux Plus series allows you to control just the lighting with a more traditional switch.

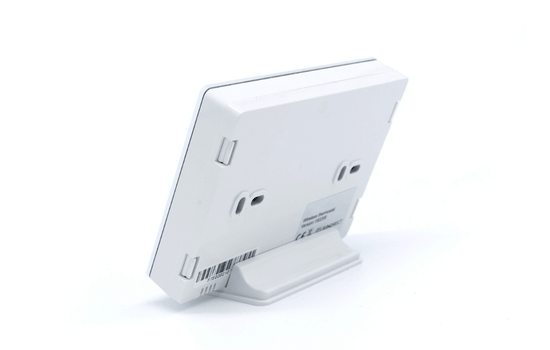

Smart Lux can be either surface mounted to the wall permanently or used as a remote control. With our easy setup design, you can set up the communication to the built-in receiver in just a few minutes. The Smart Lux remote control is powered by 2*AA batteries.
Notice: Smart Lux only works with Sundirect Lux-Plus lighting infrared panel heaters.
Technical data
| Model: | Smart Lux |
| Size: | 86×123×20mm |
| Color: | White |
| Material: | PC+ ABS to UL94 fire retardant plastic |
| Power supply: | 2×AA batteries (not included in the package) |
| Mounting: | Free-standing or wall-mounting |
| Temperature range: | 5–40°C |
| Temperature accuracy: | 0.1°C |
| Frequency: | 2.4GHz RF |
| Control distance: | 35m in open obstacle |
| Control amount: | Max 10 Lux-Plus panels at once |
| WIFI Option: | No |
| Heating program: | 7-day heating program, 4 periods per day |
| Warranty: | 2 years |
